Home > Products > Transformer cabinets > Metering cabinet system E 950/550 D1-W

Metering cabinet system E 950/550 D1-W

Recycleble full plastic ● protective insulation ● sturdy stiff design

Transformer metering

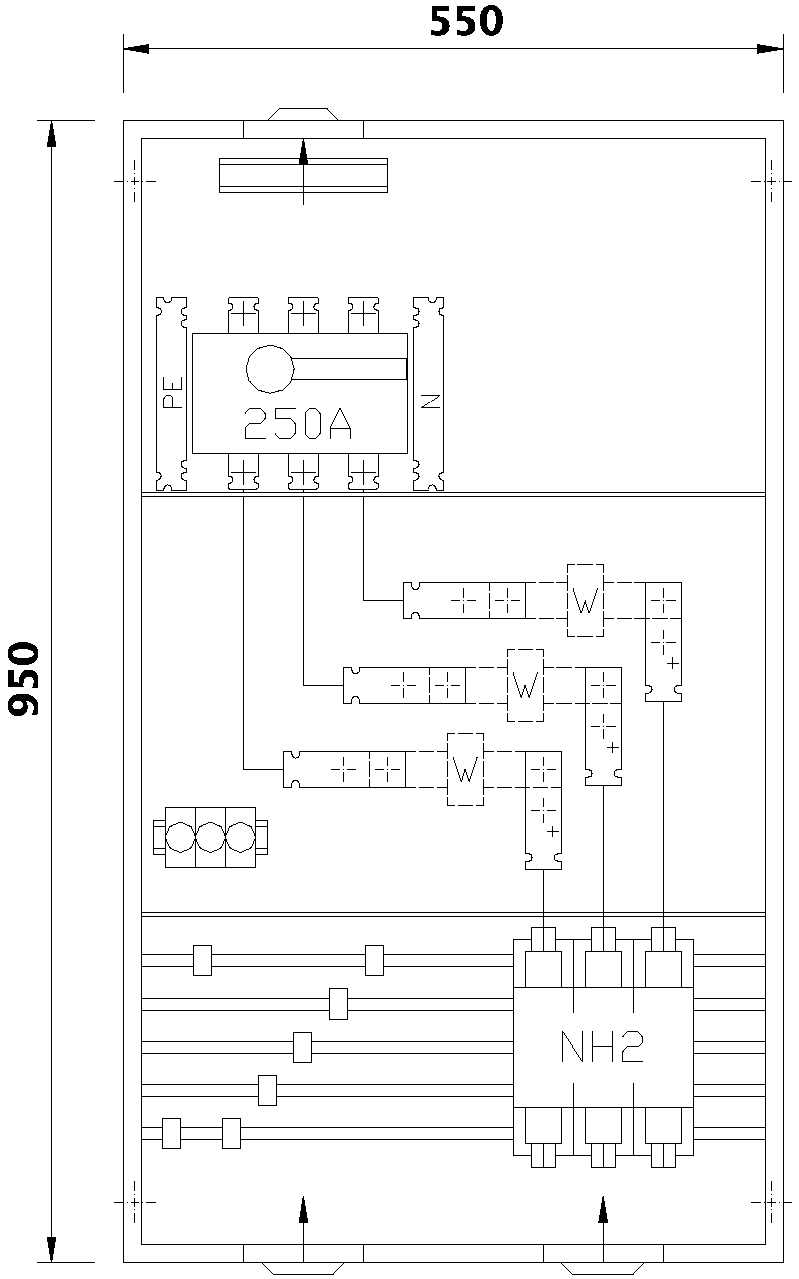

Metering cabinet E 950/550 D1

Dimensions: 950 x 550 x 225 mm

• Wire in: bottom 3x Pg 16, 1x Pg21

• Bottom test terminal

Lock: Square-key lock with sealable indicating disk

4 screws and plugs to mount cabinet ø9

Weight: approx. 13 kg

Meter board E 950/550 D1-H5

Dimensions: 785 x 480 x 25 mm

• 4 meter positions

• Top test terminal

• Completely wired ready to connect

Transparent, sealable terminal compartment cover

Weight: approx. 5 kg
